Indicators
|
The PTH5 and DTH models are large indicators/digital displays for viewing analog parameters
of temperature and humidity according to Royal Decree 1826/2009 (RITE RD 1826/2009)
•Large
digital indicators solutions for temperature and humidity ASP RITE .
PPA10 models are digital displays indicators for viewing any analog signal
into a TFT / LCD / LED of any dimension. |
|
|
 |
|
|
|
|
|

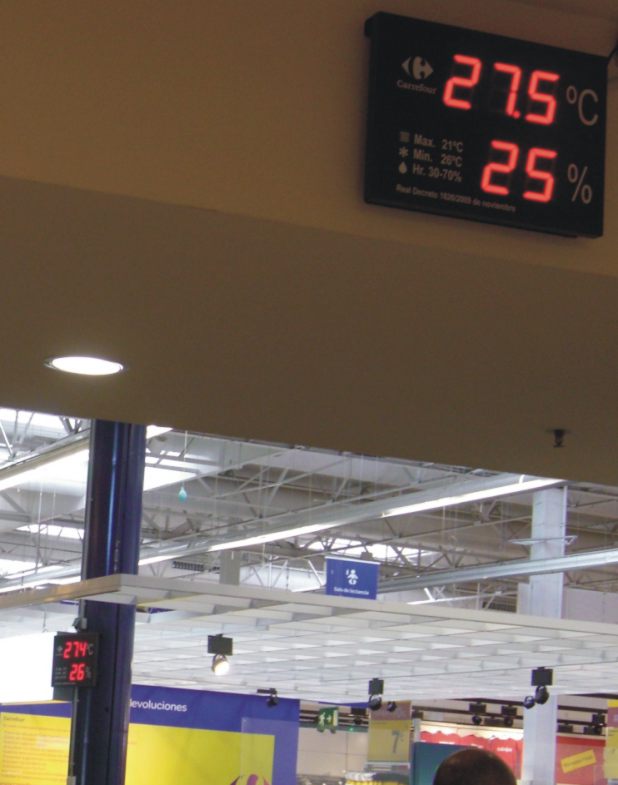

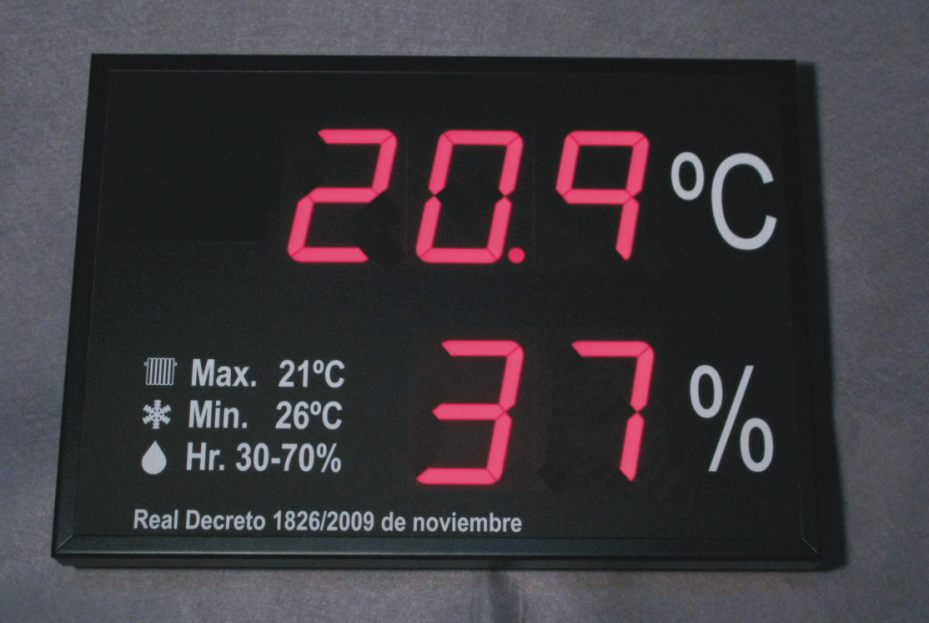

DTH
The DTH is a
large indicator / digital display that shows temperature and humidity values
in high visibility segments displays (RITE) measured through their wall mount transmitters (analog and wireless) or
transmitted through one of its many optional communication buses (RS232 / RS485, Modbus RTU, Modbus TCP).
The digital temperature and humidity DTH meets the specifications set out in the
Royal Decree 1826/2009 (RITE RD 1826/2009).
•Large
digital display RITE indicator DTH Specifications .
•Royal Decree RD1826/2009 text.
|
|
|
 |
 |
 |
|
|
|
|
|
PTH5
The PTH5 is a large indicator / digital display that shows temperature and humidity values
(RITE) measured through their probes (analog and wireless) or transmitted through one of its many
buses optional communication (RS232/RS485, Modbus RTU, Modbus TCP) on TFT / LCD / LED screen of various sizes.
The digital temperature and humidity PTH5 meets with the specifications laid down in the Royal Decree
1826/2009 (RITE RD 1826/2009).
•Large
digital display RITE indicator PTH5
Specification.
|
|
|
 |
 |
 |
 |
|
|
|
|

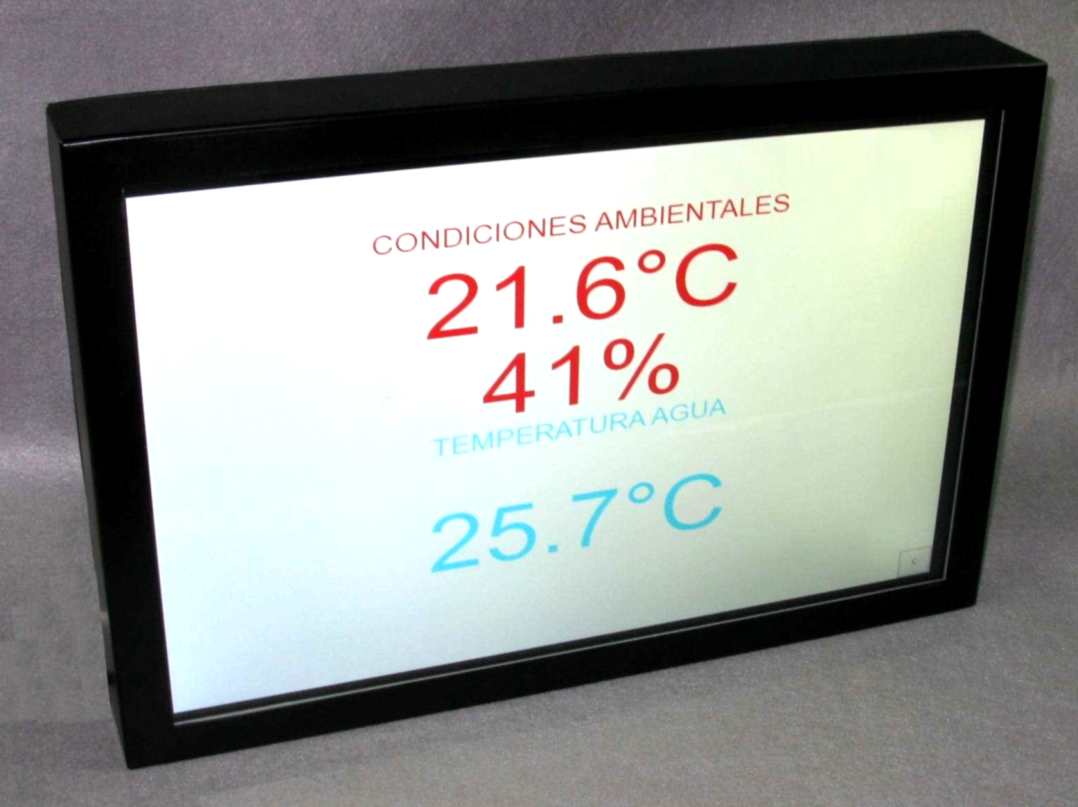

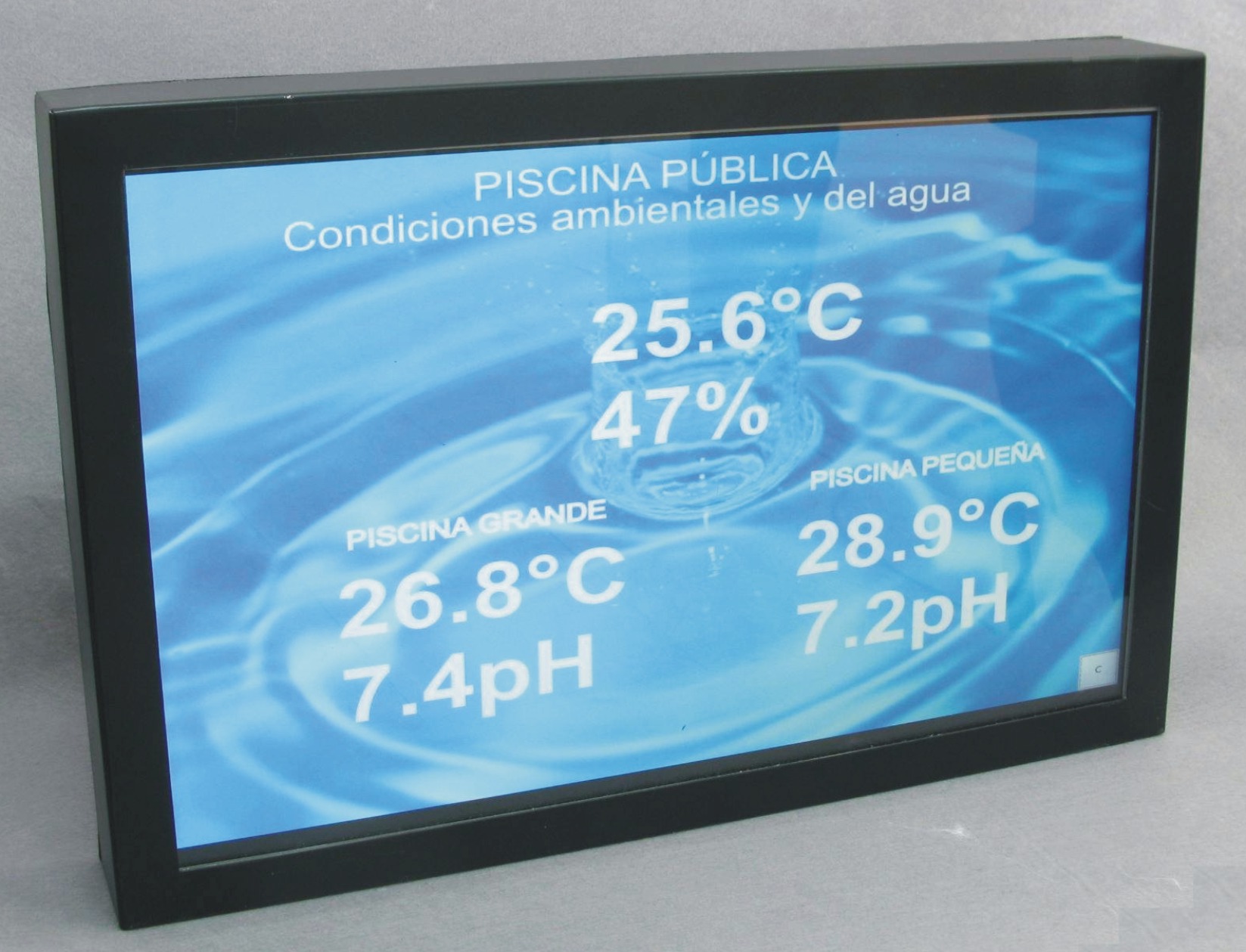

PTH5-P

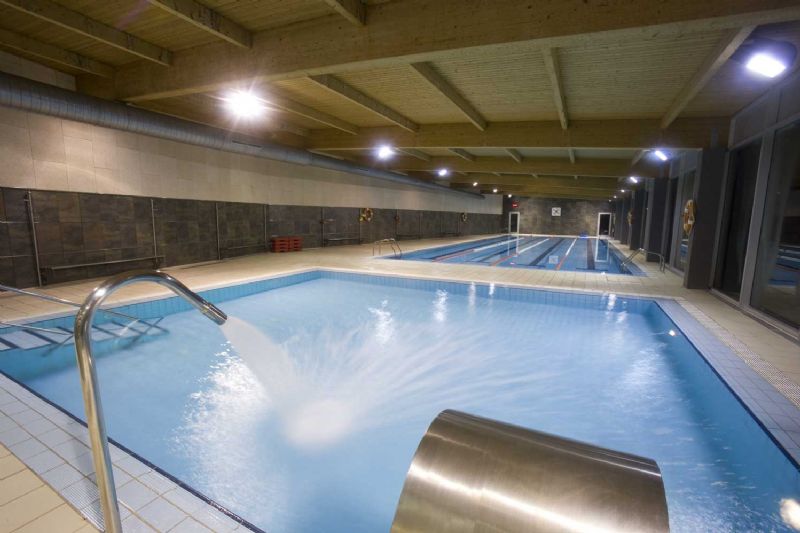

The PTH5-P is a large indicator / digital display screen with class IP-67, suitable for wet environments and splashes as swimming pools and outdoor enclosures.
The large digital display PTH5-configurable displays data values as the pH, the temperature of the
pool water, the degree of humidity among others, in a TFT / LCD / LED large screen.
•Large
digital temperature and humidity pools indicator PTH5-P Specifications.
|
|
|
 |
 |
 |
|
|
|
|
|

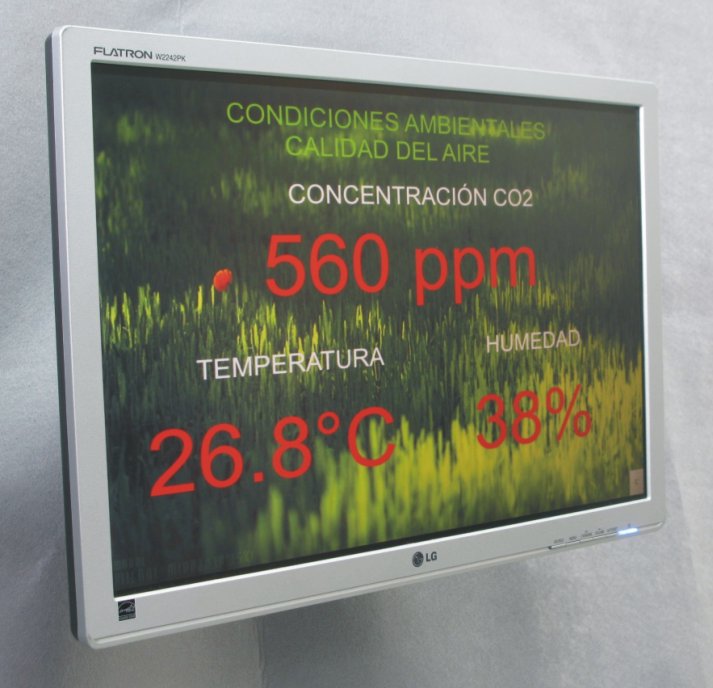

PPA10
The PPA10 is an indicator / digital display screen that shows any analog value captured through
of its inputs 0-10V, 4-20mA, NTC or communication (RS232/RS485,Modbus RTU, Modbus TCP) on a
TFT / LCD / LED screen of various sizes.
One of its most common uses is the digital indicator of quality indexair or CO2 with temperature and humidity.
The large digital display is easily customizable through your menu, you can display up to 10
analog signals and measure any physical parameter.
•Large
digital analogue data indicator PPA10 Specifications .
|
|
|
 |
 |
 |
|
|
|
